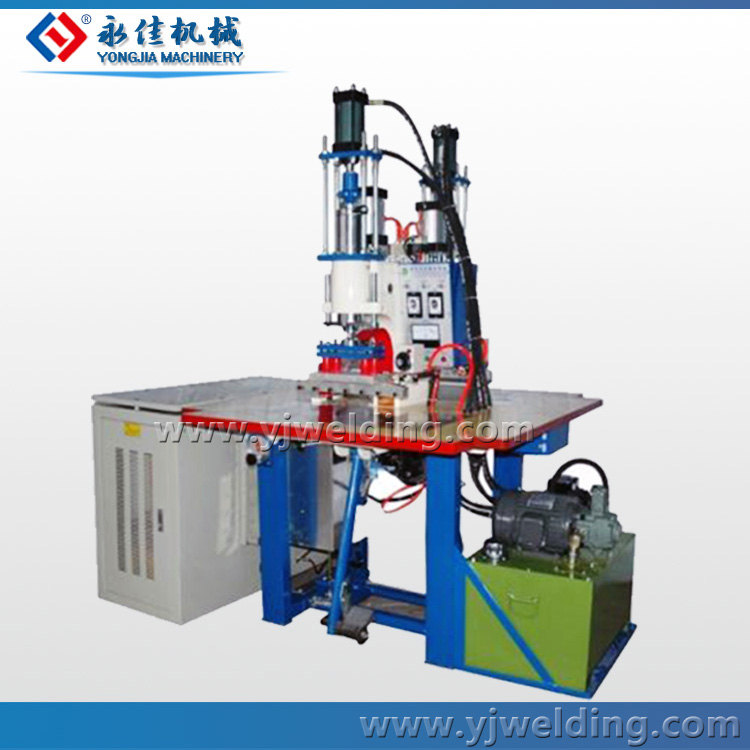

Double-head Oil-hydraulic Pedal High-frequency Welding Machine
We will send the quotation to you within 24 hours.
All form fields are required.
Captcha
Technical Parameter:
Model | YJ-TJ-4000KW | YJ-TJ-5000KW | YJ-TJ-8000KW | YJ-TJ-10KW |
High frequency Power | 4000W | 5000W | 8000W | 10KW |
Supply voltage | 380V/50/60HZ | 380V/50/60HZ | 380V/50/60HZ | 380V/50/60HZ |
Frequency | 27.12MHZ | 27.12MHZ | 27.12MHZ | 27.12MHZ |
Input power | 7KVA | 8KVA | 18KVA | 25KVA |
Rectifier | Diode | Diode | Diode | Diode |
Oscillation tube | 7T62RB | 7T85RB | 7T69RB | E3069 |
Maximum output | 1000kg | 1000kg | 1000kg | 1000kg |
Electrode interval | 160mm | 160mm | 160mm | 160mm |
Activity size | 60mm | 60mm | 60mm | 60mm |
Top Electrode size | 120*290mm | 120*290mm | 300*400mm | 300*400mm |
Bottom electrode size | 350*700mm | 350*700mm | 400*800mm | 400*800mm |
Welding time | 0-10 seconds | 0-10 seconds | 0-10 seconds | 0-10 seconds |
Capacity | 3500 times/8H | 3500 times/8H | 3500 times/8H | 3500 times/8H |
Pressure way | Oil pressure drive | Oil pressure drive | Oil pressure drive | Oil pressure drive |
Deck plate size | 350*700mm | 350*700mm | 350*700mm | 350*700mm |
Outface dimension | 1720*1100*2000 | 1720*1100*2000 | 1720*1100*2000 | 1720*1100*2000 |
Net weight | 360kg | 360kg | 360kg | 360kg |
Packing:
With plywood material for packing, which do not need fumigation certificate, safe for environment.
Factory:
Customers Visiting Us:
