Automatic High Frequency Packing Machine
We will send the quotation to you within 24 hours.
All form fields are required.
Captcha

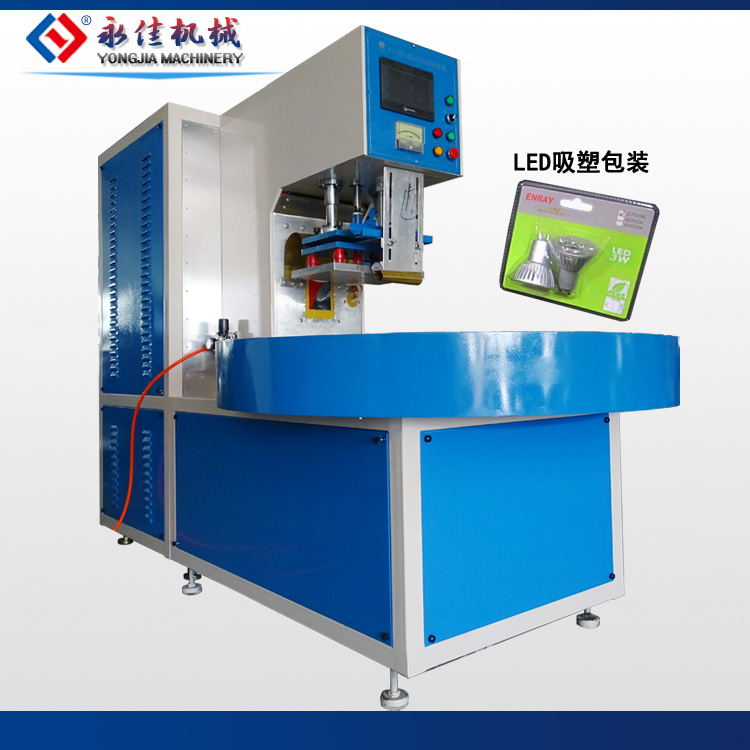

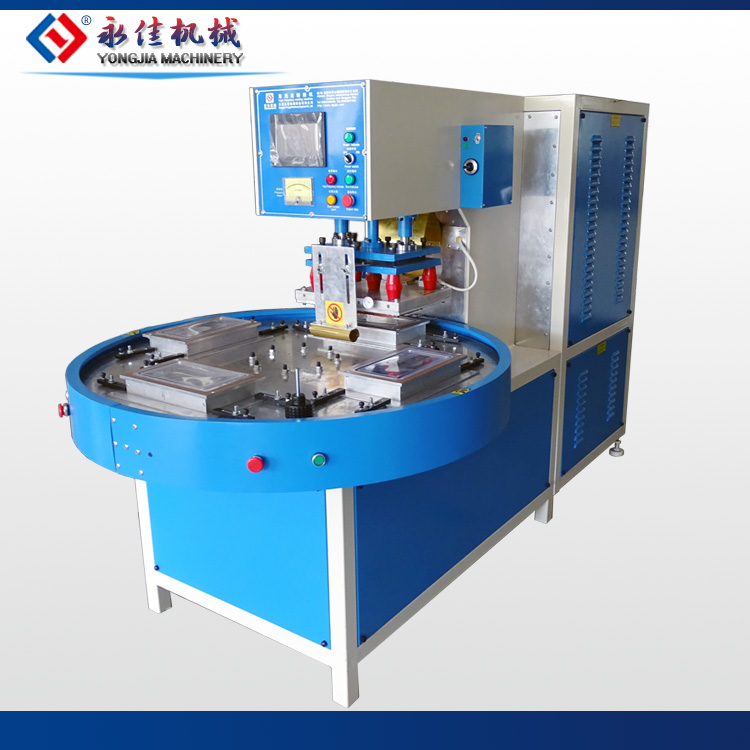

Automatic turn table high-frequency welding machine adopts precision slicer device and Taiwan motor drive. Station works turn by turn, accure location and reclaiming manipulator can be chosen.
It can be used high-frequency blister sealing packing machine, the using time can be adjusted according to blister packing size even to decide to pack one or more products in one time. Automatically rotate working plate, 3-6 stations can be chosen and increase capacity.
Technical parameter
Model | YJ-ZD-8000W | YJ-ZD-10KW | YJ-ZD-12KW | YJ-ZD-15KW |
High frequency | 8000W | 10000W | 12000W | 15000W |
Power voltage | 380V 50/60HZ | 380V 50/60HZ | 380V 50/60HZ | 380V 50/60HZ |
High frequency | 27.12MHZ | 27.12MHZ | 13.56 MHZ | 13.56 MHZ |
Input power | 15KVA | 18KVA | 20KVA | 25KVA |
Rectifier | diode | diode | diode | diode |
Oscillation | 7T69RB | E3069 | E3130 | 8T85RB |
Max pressure | 500kg | 500kg | 800kg | 800kg |
Electrode interval | 200mm | 200mm | 200mm | 200mm |
Work area | 150 mm | 150 mm | 150 mm | 150 mm |
Upper electrode size | 300*400mm | 300*400mm | 350*450mm | 350*500mm |
Under electrode size | 350*450mm | 350*450mm | 400*500mm | 400*500mm |
Welding time | 0-10s | 0-10s | 0-10s | 0-10s |

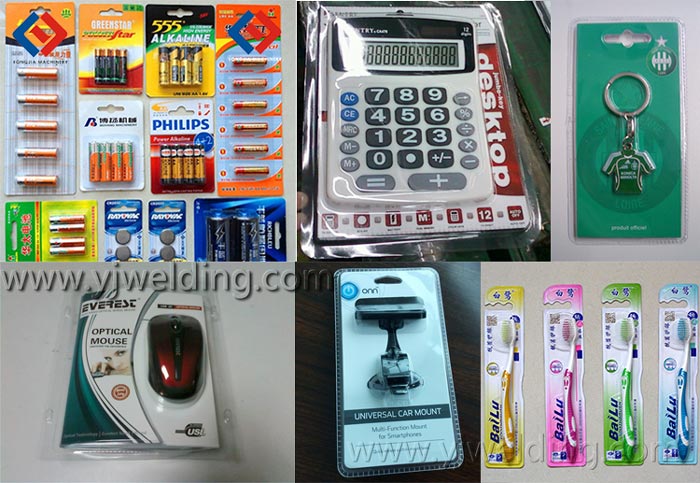

Sample:
Features:

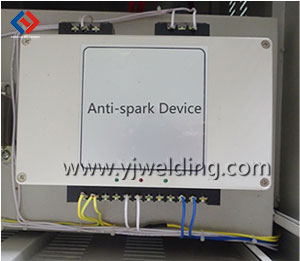

1.With Anti-spark Device
The special electronic circuit will turn off high frequency automatically once there’ spark to protect both moulds and material; at the same time alarming light is on for easy understand where is the problem.
2.Avoidance of radio interference devices
This machine with frequency stability device and magnetic leakage suppressor, to avoid frequency drift due to improper operation.
3.Easy Adjustable Tuner
Output power can be adjusted according to different size and thickness, and also with special control device and electronic circuit which can highly reduce welding time and raise the production speed.
4.PLC Operating Panel

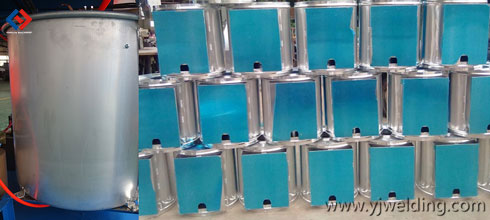

5.One-time forming oscillation bucket
One-time forming with thicker metal and also strengthening rib added to protect the oscillation device.

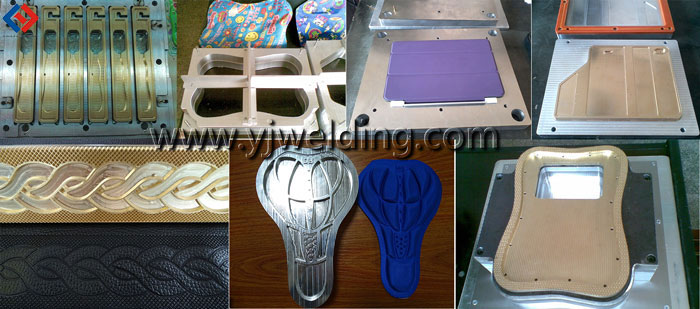

Moulds For Reference:
Packing:
With plywood material for packing, which do not need fumigation certificate, safe for environment.
