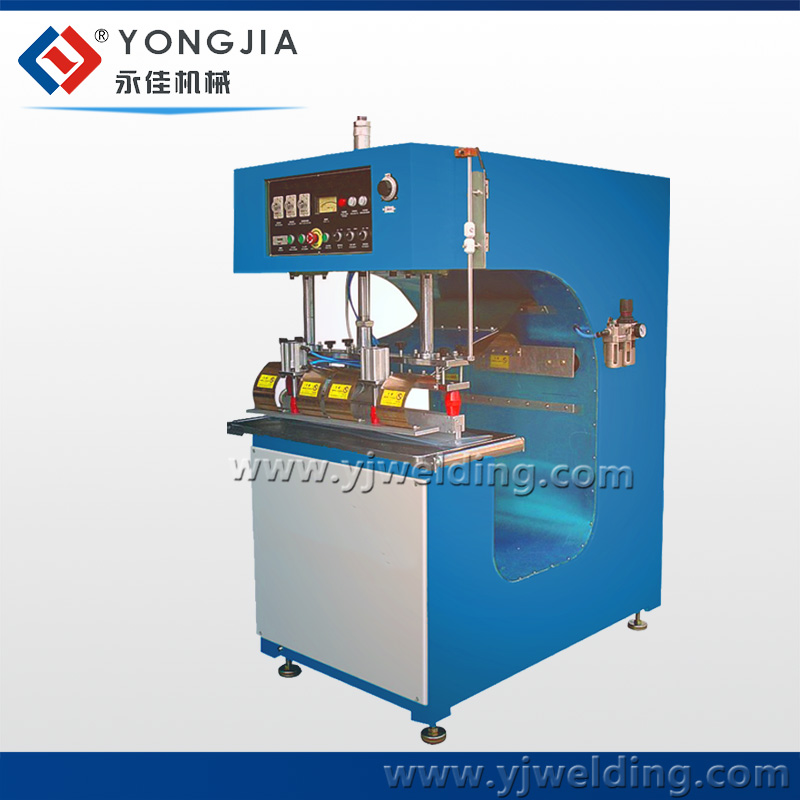

High frequency PVC Banners, Hoardings, Billboards Welding Machine
We will send the quotation to you within 24 hours.
All form fields are required.
Captcha
Model | YJ-HP-8KW | YJ-HP-12KW | YJ-HP-15KW | YJ-HP-25KW |
Output Power of Generator | 8000W | 12000W | 15000W | 25000W |
Anti-Spark System | U.S.A. PL-5557 High sensitive anti-spark system | |||
Voltage | 3 PHASE/ AC 380V 50Hz-60HZ or customize | |||
Frequency | 27.12MHZ | 13.56MHZ | ||
Input power | 15KVA | 20KVA | 25KVA | 35KVA |
Rectifier | SILICON DIODE | |||
Oscillation tube | 7T69RB | E3130 | 8T85RB | 8T25RA |
Max pressure | 500kg | 800kg | 1000kg | 1500kg |
Operation mode | Pneumatic Operated | |||
Max gap of electrodes | 150mm | |||
Size of active horn | 150mm | |||
Upper Mould Holder (W*H*L) | 200*800mm | 100*1200mm | 100*15000mm | 100*1800mm |
Size of Work Table (L*W) | 450*1050mm | 300*1300mm | 450*1150mm | 450*1250mm |
Welding time | 0.01~9.99s adjustable | |||
Net weight | 800kgs | 1000kgs | 1200kgs | 1400kgs |
Foreseen productivity: | According to welding material and operator skills |
Sample:
Packing:
With plywood material for packing, which do not need fumigation certificate, safe for environment.
Factory:
Customers Visiting Us:
